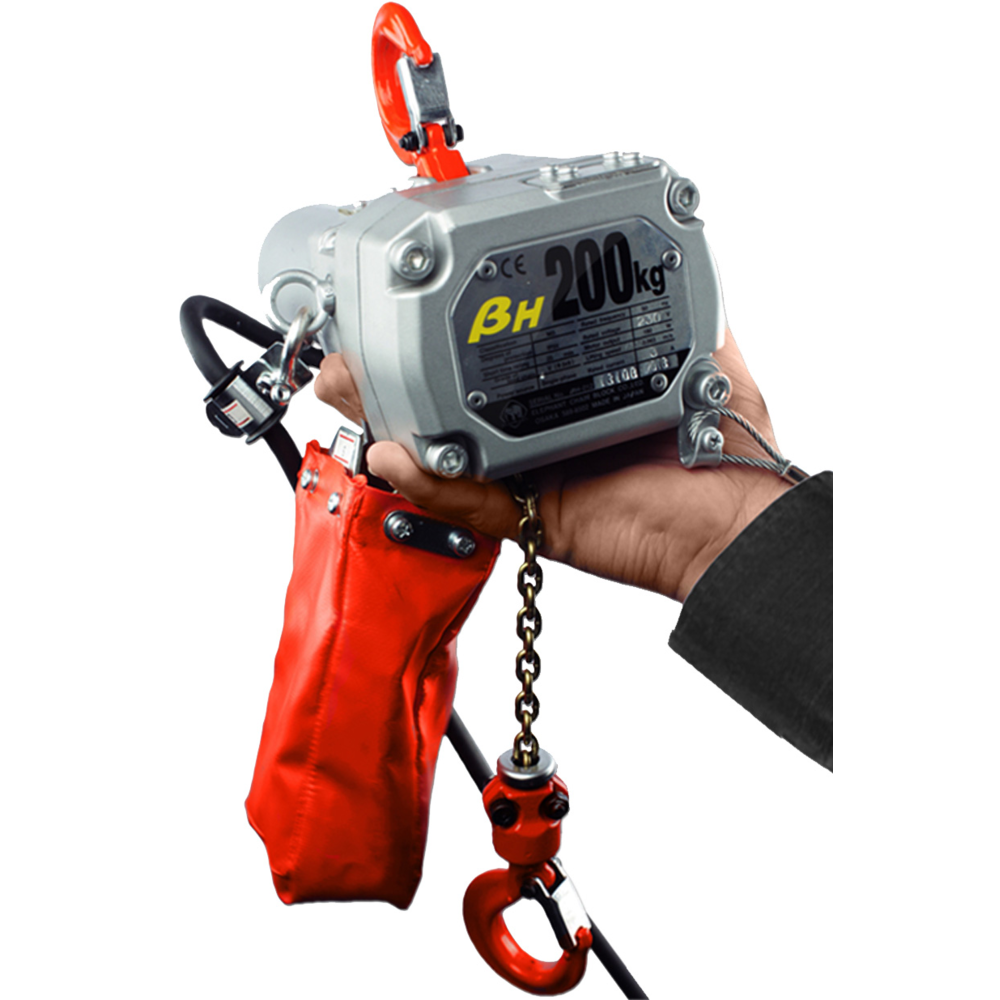

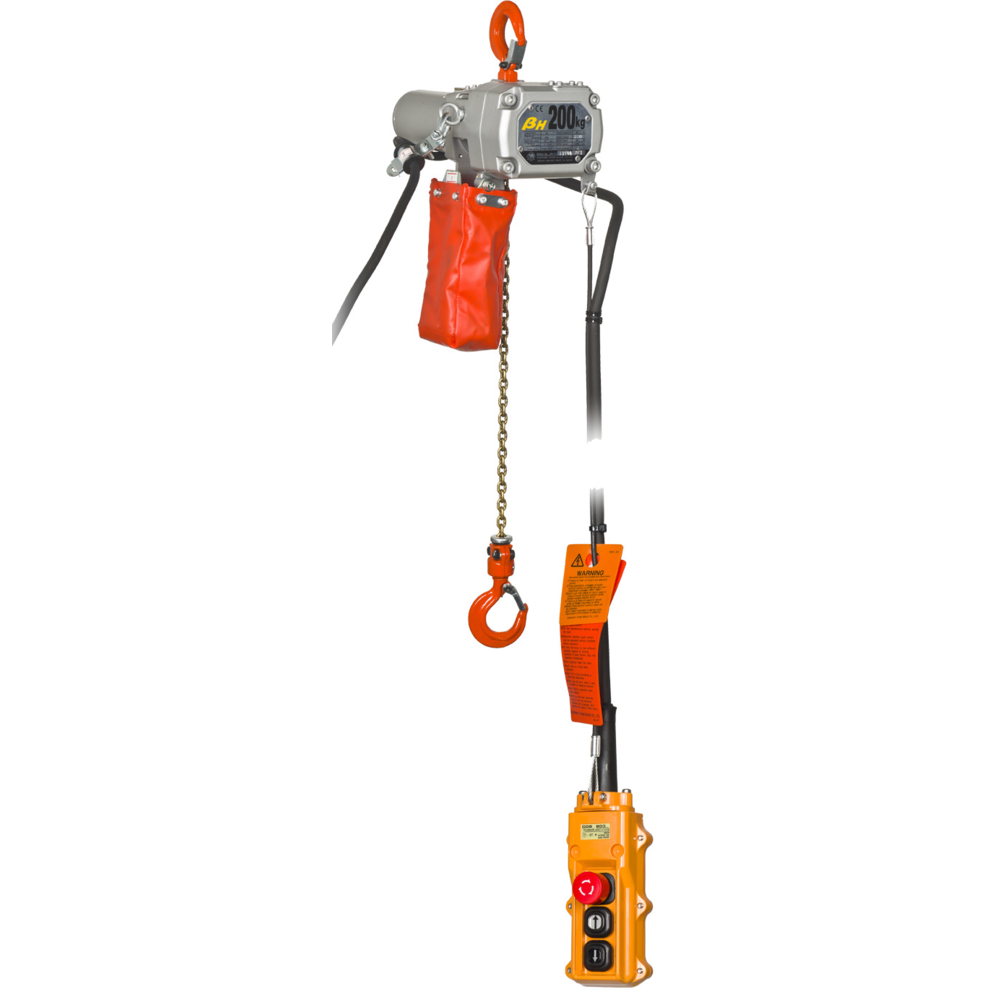

The Elephant Beta 230 VAC electric chain hoists are light weight, compact and ideal for light installation work.
Features
- Slip clutch for overload prevention
- Self-locking brake that will hold the load at any required height
- Very low own weight, only 7.5 kg.
- Very compact.
- In case of overload, the hooks will gradually bend and do not suddenly break off.
- Grade 10 load chain.
Technical specification:
- Insulation class B.
- FEM 9.511 motor: 1Am.
- Power supply 230VAC.
- Protection class IP54
- Control power supply 230VAC direct control.
Standard delivery
- 3 m lifting height (maximum distance between top and bottom hook).
- 1.8 m control cable, direct control.
- 3 m power cable.
- Chain bag max 10 m.
- Trolley not included.
Option
- Other hoisting and operating height is also possible.
- Push trolley.
- Marking: CE-marked
