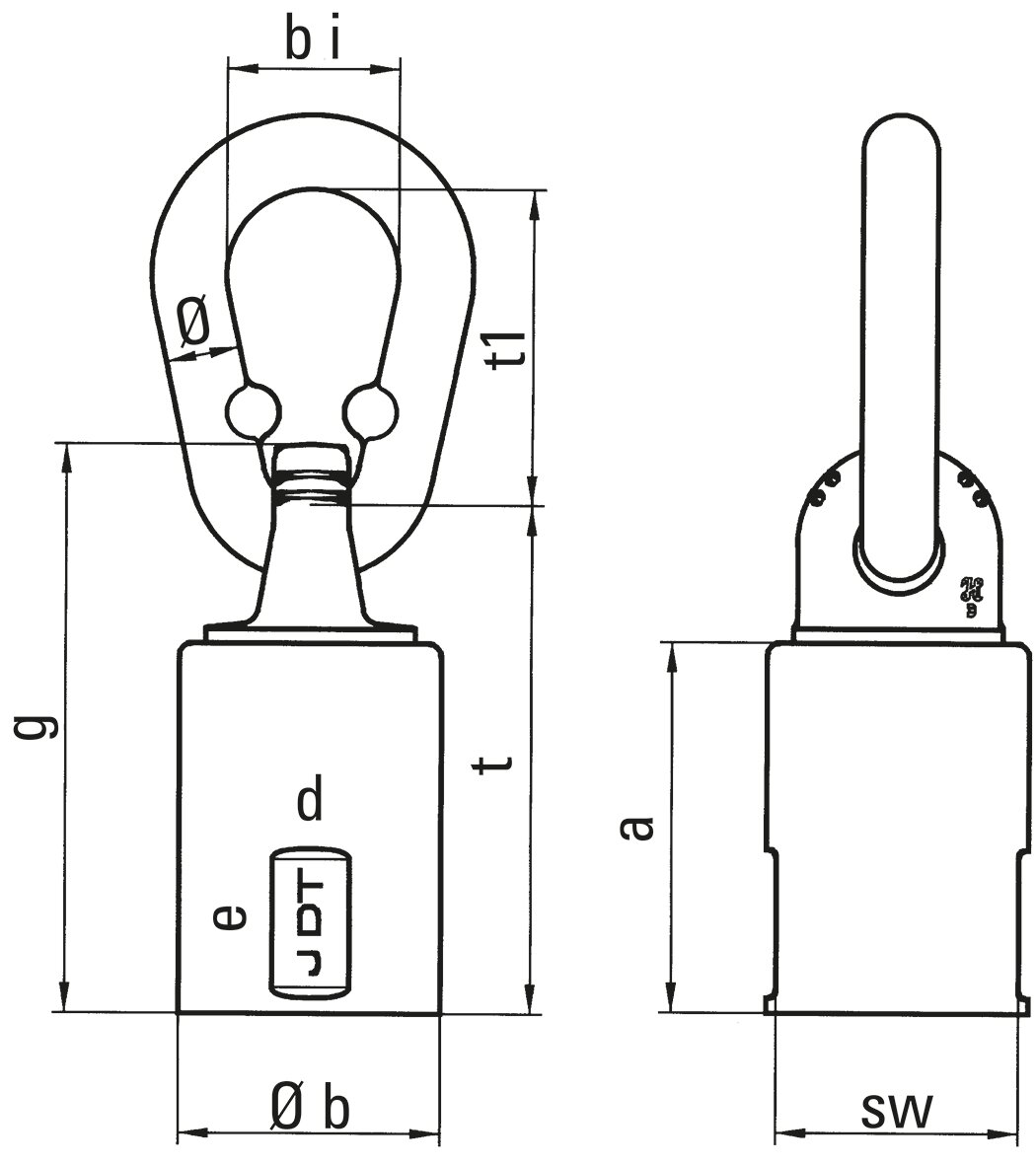

The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not in use. Furthermore it has a ball beared sviwel which makes the lifting eye to always stand in the correct direction to the load.
The advantages:
- The stamped WLL applies to the kind of attachment by 90°.
- Bolts of the quality class 10.9 crack-tested are permitted as connecting elements
- Different threaded versions and lengths can be supplied on request.
- Material: Eye and swivel of alloy steel grade 10.
- Marking: WLL.
- Finish: Painted.
- Safety factor: 4:1.
- Grade: 10
Select a row from the table below, then click the add to quote button
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
Get CAD
Download
Load diagram
|
Kind of attachment
|
|
|
|
|
|
|
|
|
|||||||||
|
Number of legs
|
1
|
1
|
2
|
2
|
2
|
|
3+4
|
3+4
|
|||||||||
|
Angle of inclination
|
0°
|
90°
|
0°
|
90°
|
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
|||||||||
|
Code
|
WLL
|
|
|
|
|
|
|
|
|||||||||
|
|
tons
|
|
|
|
|
|
|
|
|||||||||
|
TP-F 0,5
|
1,4
|
0,5
|
2,8
|
1,0
|
0,7
|
0,5
|
1,0
|
0,75
|
|||||||||
|
TP-F 1
|
2,8
|
1,0
|
5,6
|
2,0
|
1,4
|
1,0
|
2,12
|
1,5
|
|||||||||
|
TP-F 1,7
|
5,0
|
1,7
|
10,0
|
3,4
|
2,4
|
1,7
|
3,55
|
2,5
|
|||||||||
|
TP-F 2,1
|
8,0
|
2,1
|
16,0
|
4,0
|
2,8
|
2,1
|
4,25
|
3,15
|
|||||||||
|
TP-F 3,2
|
12,0
|
3,2
|
24,0
|
6,4
|
4,25
|
3,15
|
6,7
|
4,75
|
|||||||||
|
TP-F 5
|
15,0
|
5,0
|
30,0
|
10,0
|
6,7
|
5,0
|
10,0
|
7,5
|
|||||||||
|
In case of an unsymmetrical load distribution, the lifting capacities applicable to the 2- and 3-/4-leg slings are the same as for 1-leg types at 90°.
|
|||||||||||||||||
