Properties
- Load pressure brake.
- Adjustable crank length; backwind-free.
- The drums and the shaft supported by needle bearings.
- Paint finish and enamel varnish are standard.
- Capacity min. 2%
Standard delivery:
- Does not include wire rope.
Option:
- Wire rope on request with hook and safety latch.
- Marking: According to standard, CE-marked
- Standard: EN 13157, EN 12100

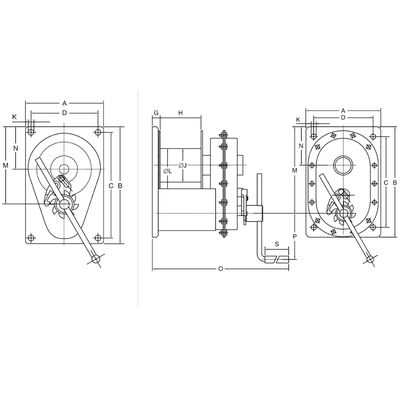

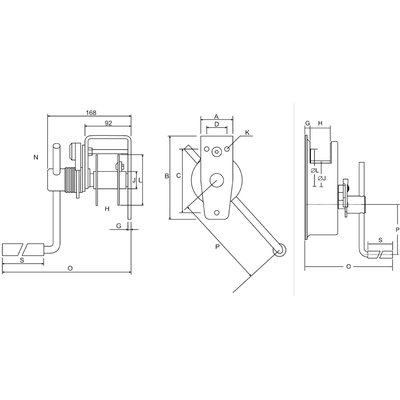

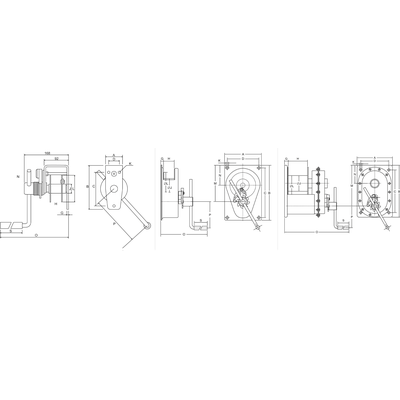

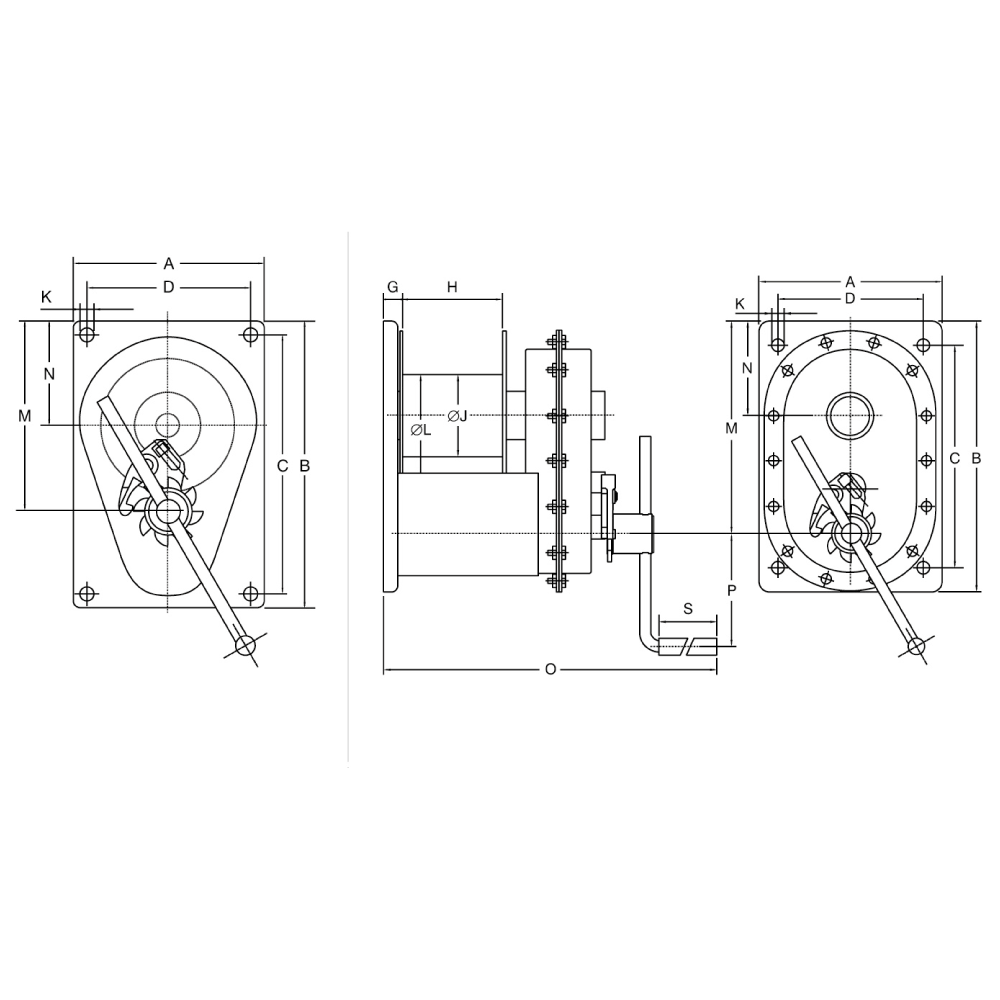

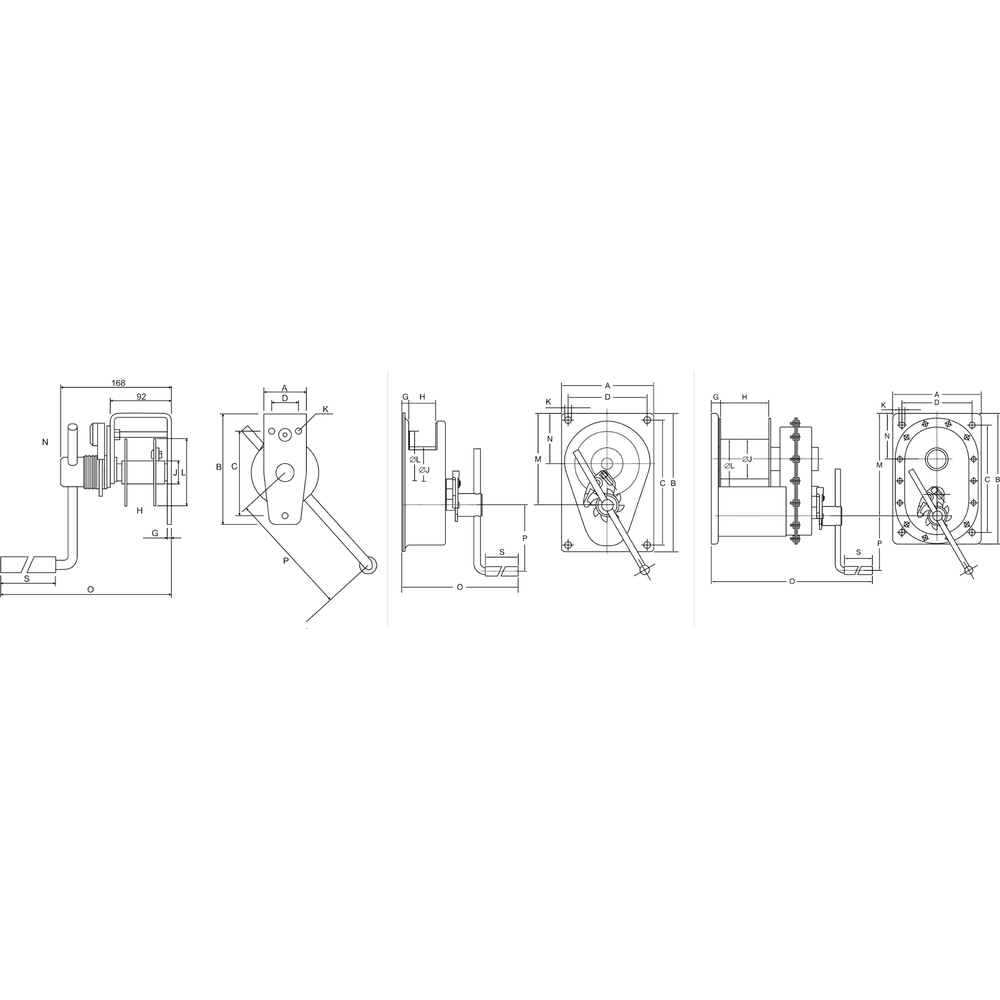

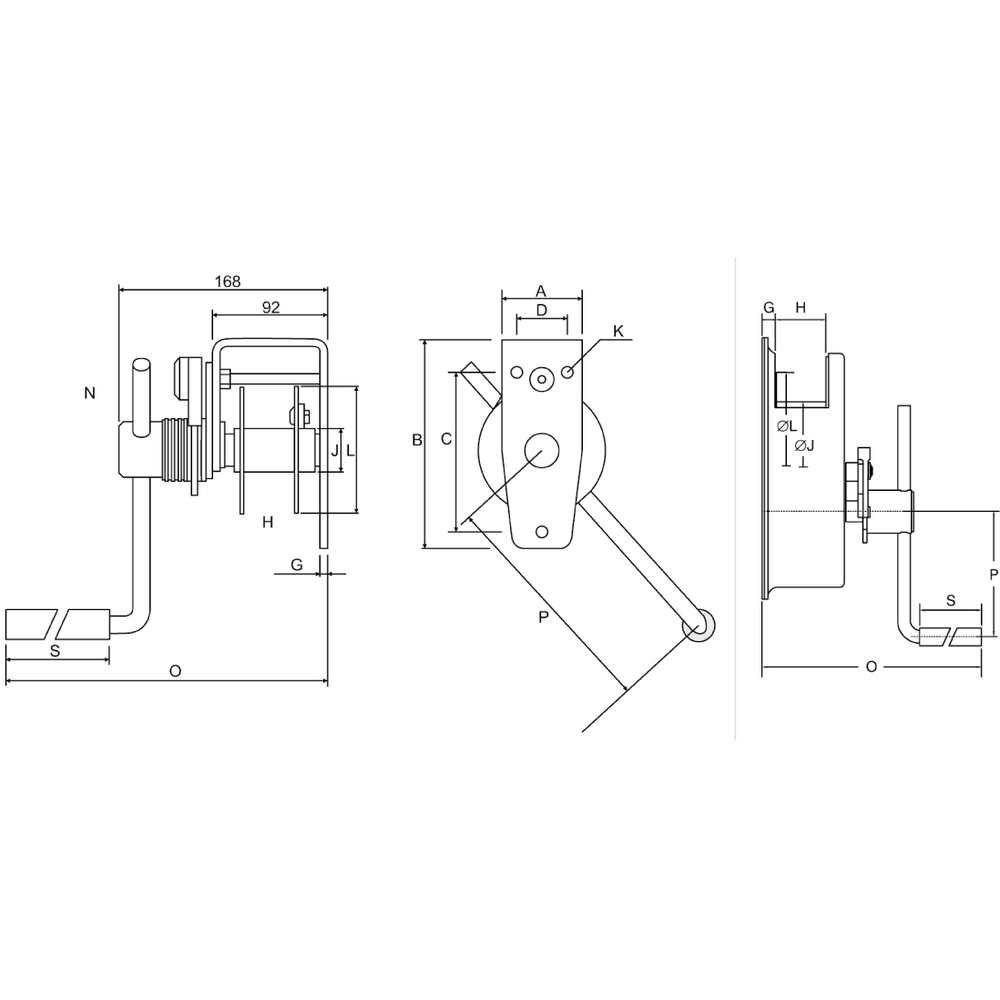

| Model | A | B | C | D | G | H | J | K | L | M | N | O | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| TL-0.150 | 65 | 168 | 128 | 40 | 6 | 40,5 | 35 | 9 (3x) | 102 | - | 89 | 303 | 280 | 128,5 |
| TL-0.3 | 200 |
