Properties
- Construction according to DIN 152.
- Braked design with double pawl system.
- Crank gradually adjustable in length.
- Drum and shafts provided with bearings.
- Freewheel, through protected pawl system.
- Powdercoating RAL 2004.
Standard delivery
- Does not include wire rope.
Option
- Steel wire rope on request with hook and safety latch.
- Marking: According to standard, CE-marked
- Standard: EN 12100, EN 13157

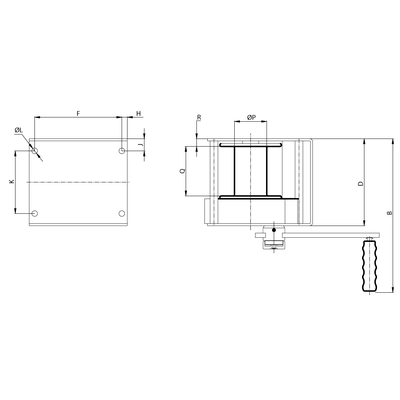

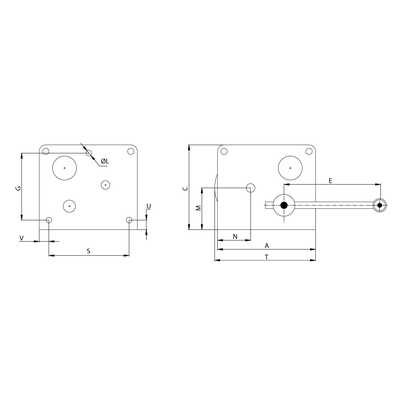

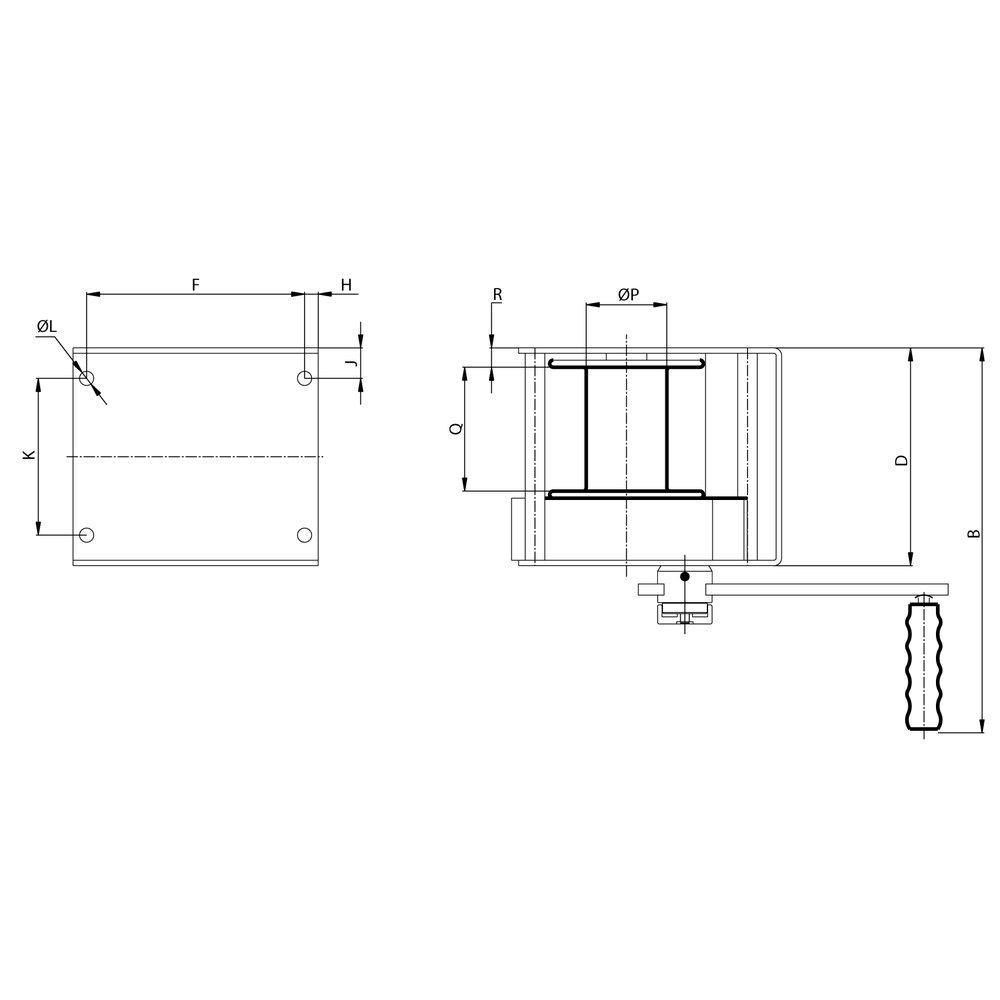

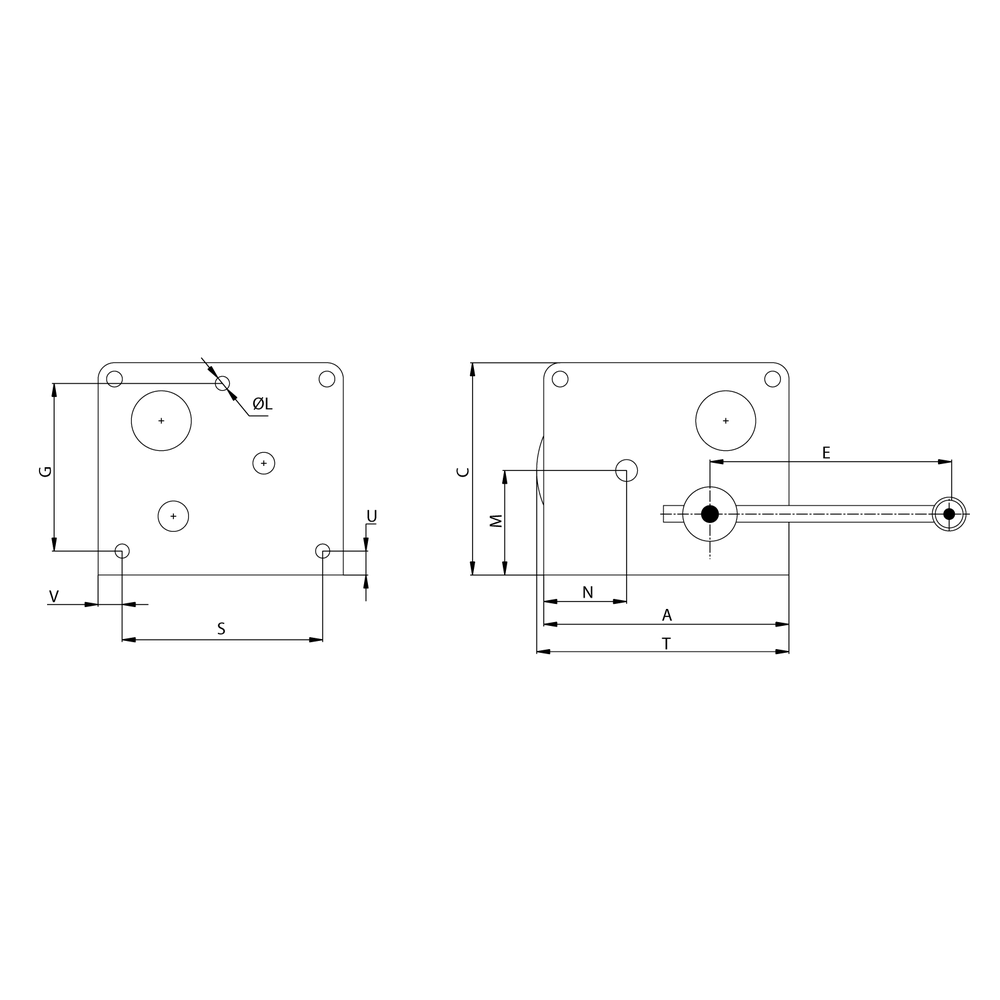

| Model | A | B | C | D | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| RGL-150 | 180 | 324 | 150 | 150 | 154 |
