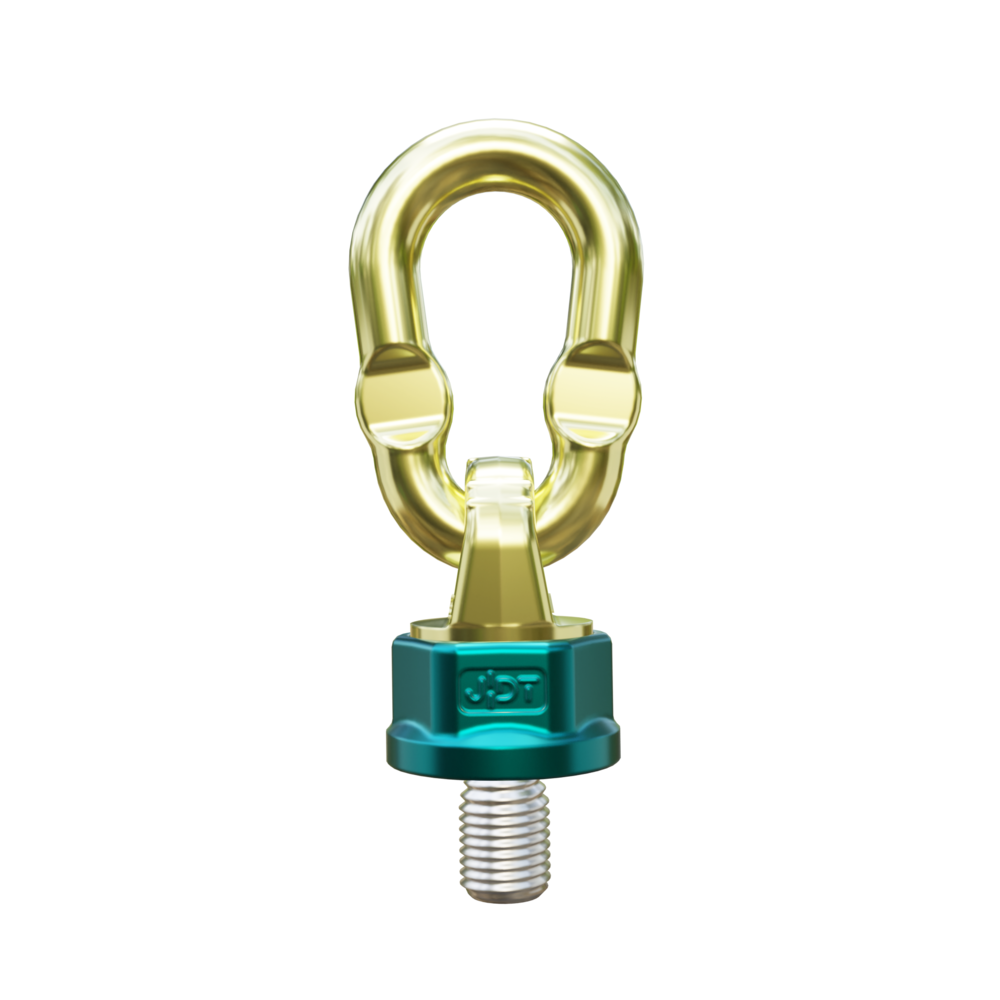

Lifting Eye TP Grade 10, alloy steel lifting eye | CERTEX Germany

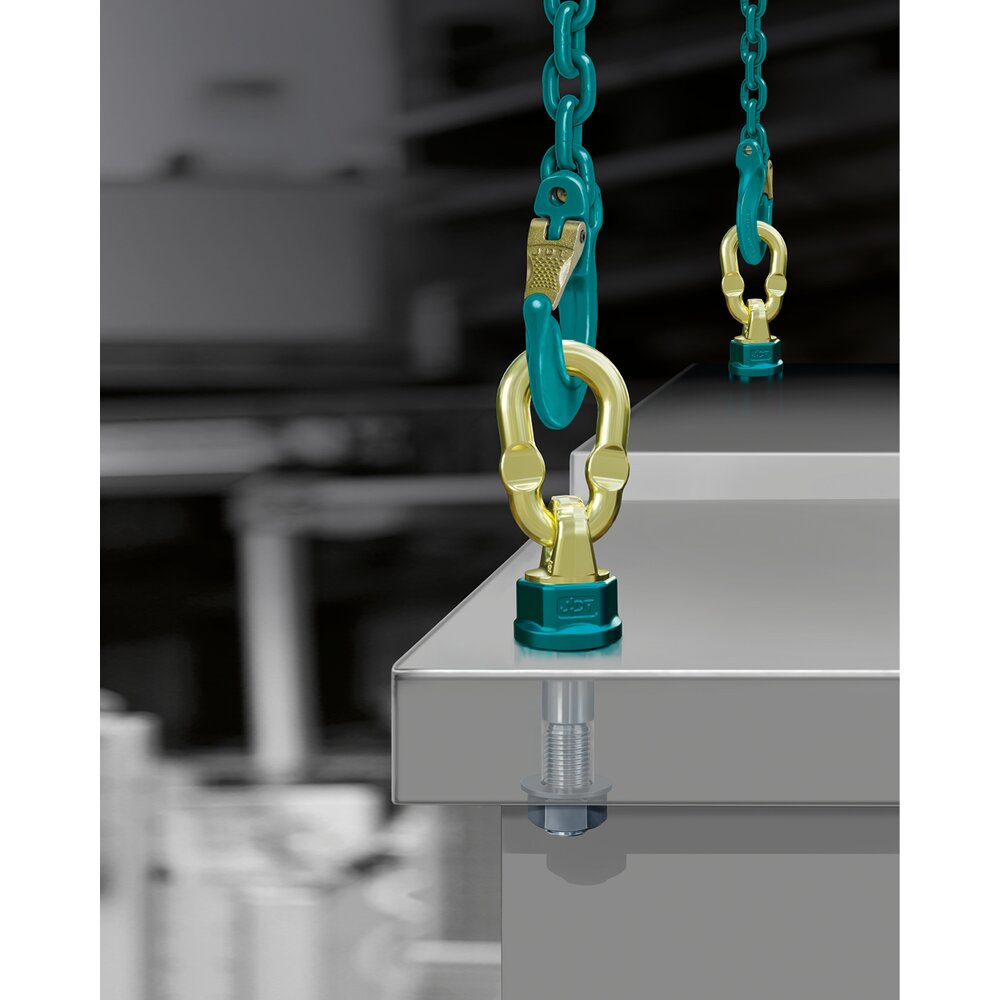

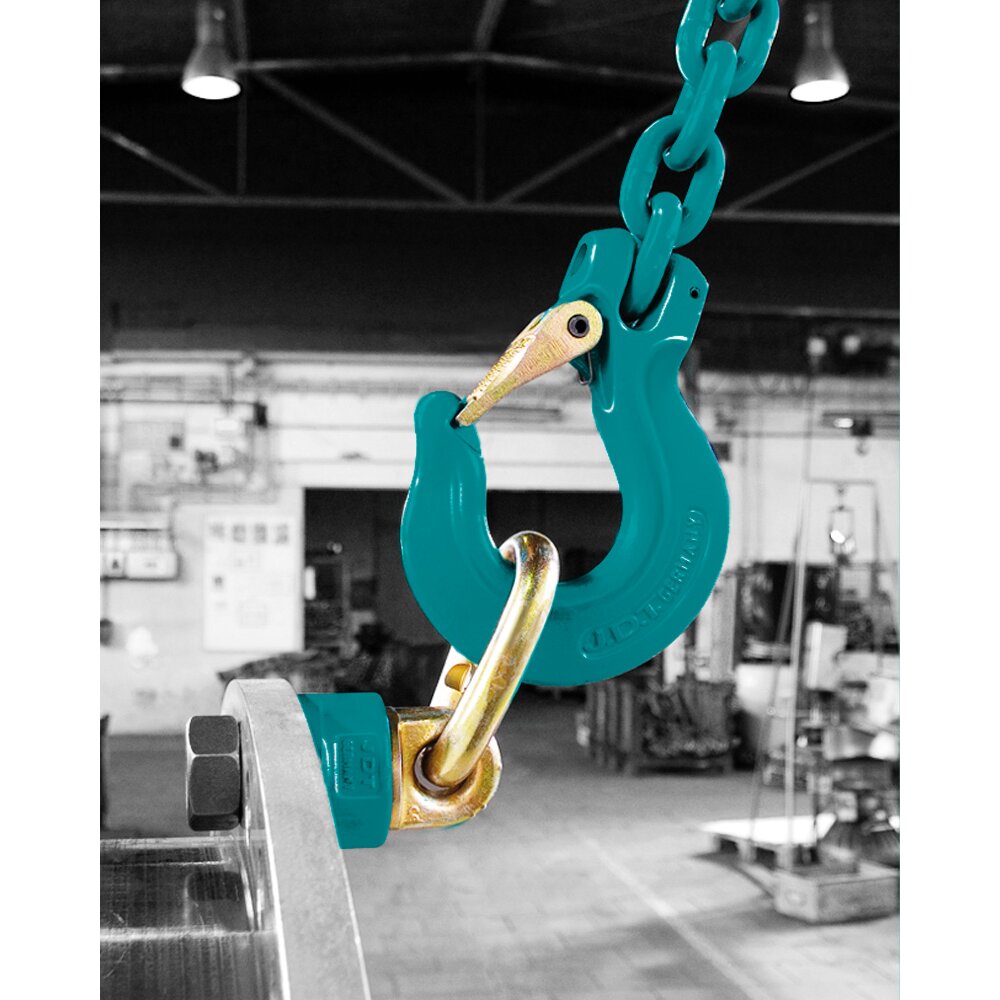

Lifting Eye TP

The eyes can be loaded in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not in use. Furthermore it has a ball beared swivel which makes the lifting eye to always stand in the correct direction to the load.

Show more

Product number:

The eyes can be loaded in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not in use. Furthermore it has a ball beared swivel which makes the lifting eye to always stand in the correct direction to the load.

  • Material: Eye and swivel of alloy steel
  • Marking: CE-marked, WLL.
  • Finish: Painted.
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1

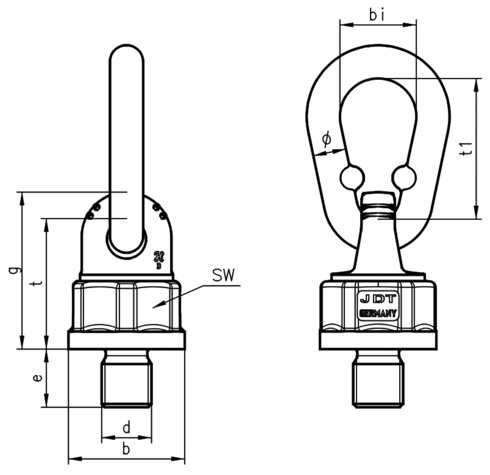

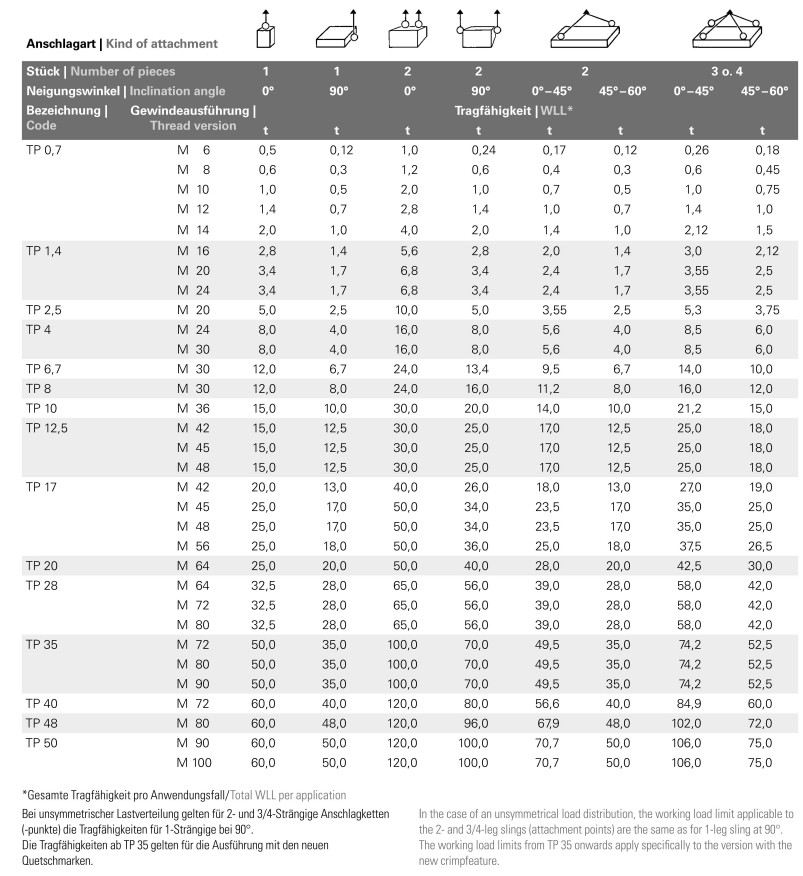

Load diagram

Kind of attachment


Load 1

Load 6

Load 2

Load 5

Load 3



Load 4


Number of legs

1
1
2
2
2

3+4
3+4
Angle of inclination

90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
Code
Thread
Load capacity









tons







TP 0,7
M 10
1,0
0,5
2,0
1,0
0,7
0,5
1,0
0,75

M 12
1,4
0,7
2,8
1,4
1,0
0,7
1,4
1,0

M 14
2,0
1,0
4,0
2,0
1,4
1,0
2,12
1,5
TP 1,4
M 16
2,8
1,4
5,6
2,8
2,0
1,4
3,0
2,12

M 20
3,4
1,7
6,8
3,4
2,4
1,7
3,55
2,5

M 24
3,4
1,7
6,8
3,4
2,4
1,7
3,55
2,5
TP 2,5
M 20
5,0
2,5
10,0
5,0
3,55
2,5
5,3
3,75
TP 4
M 24
8,0
4,0
16,0
8,0
5,6
4,0
8,5
6,0

M 30
8,0
4,0
16,0
8,0
5,6
4,0
8,5
6,0
TP 6,7
M 30
12,0
6,7
24,0
13,4
9,5
6,7
14,0
10,0
TP 8
M 30
12,0
8,0
24,0
16,0
11,2
8,0
16,0
12,0
TP 10
M 36
15,0
10,0
30,0
20,0
14,0
10,0
21,2
15,0
TP 12,5
M 42
15,0
12,5
30,0
25,0
17,0
12,5
25,0
18,0

M 45
15,0
12,5
30,0
25,0
17,0
12,5
25,0
18,0

M 48
15,0
12,5
30,0
25,0
17,0
12,5
25,0
18,0
TP 17
M 42
20,0
13,0
40,0
26,0
18,0
13,0
27,0
19,0

M 45
25,0
17,0
50,0
34,0
23,5
17,0
35,0
25,0

M 48
25,0
17,0
50,0
34,0
23,5
17,0
35,0
25,0

M 56
25,0
18,0
50,0
36,0
25,0
18,0
37,5
26,5
TP 20
M 64
25,0
20,0
50,0
40,0
28,0
20,0
42,5
30,0
TP 28
M 64
32,5
28,0
65,0
56,0
38,0
28,0
58,0
42,0

M 72
32,5
28,0
65,0
56,0
39,0
28,0
58,0
42,0

M 80
32,5
28,0
65,0
56,0
39,0
28,0
58,0
42,0
TP 35
M 80
40,0
35,0
80,0
70,0
49,0
35,0
74,0
52,5

M 90
40,0
35,0
80,0
70,0
49,0
35,0
74,0
52,5
TP 40
M 80
50,0
40,0
100
80,0
56,0
40,0
84,0
60,0

M 90
50,0
40,0
100
80,0
56,0
40,0
84,0
60,0

M 100
50,0
40,0
100
80,0
56,0
40,0
84,0
60,0
