Lifting Beam Type LF

Product information "Lifting Beam Type LF"

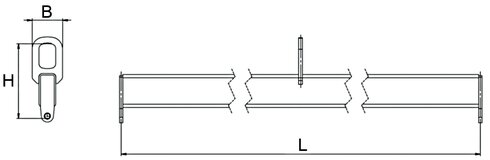

Lifting beam with low headroom to be used where the lifting height is limited. No adjusting possibilities and designed for direct attachment with the crane hook in the central lifting eye. The lifting beam is designed with one attachment point in each end. Other lengths and working loads can be manufactured upon request.
Design: Lightweight welded beam construction providing good torsional stiffness.
Proof load: Usually 1,5 x WLL.


Material: Beam and plate of high-strength structural steel.
Marking: Working load limit (WLL), CE marking, manufacturer, serial number, year of manufacturing, etc.
Finish: Yellow painted. Other treatments available on request.
Note: Top sling, separate slings and other accessories to be ordered separately.
Product number WLL Code Weight kg Stock Unit price Cad Blueprint Buy
