Beam Clamp IPTKU

Home / Products / Lifting devices / Lifting devices / Lifting clamps / Beam Clamp IPTKU

General:
The IPTKU series beam clamp has an improved hinged hoisting eye that increases the loading angles and an optional new “Double Locking Device”

Features:
• Available in capacities of 2 thru 10 metric tons.
• Wide variety of jaw openings available: 75 to 460 mm”.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

Material: Alloy steel.
Marking: According to standard, CE-marked
Standard: EN 13155

Select a row from the table below, then click the add to quote button

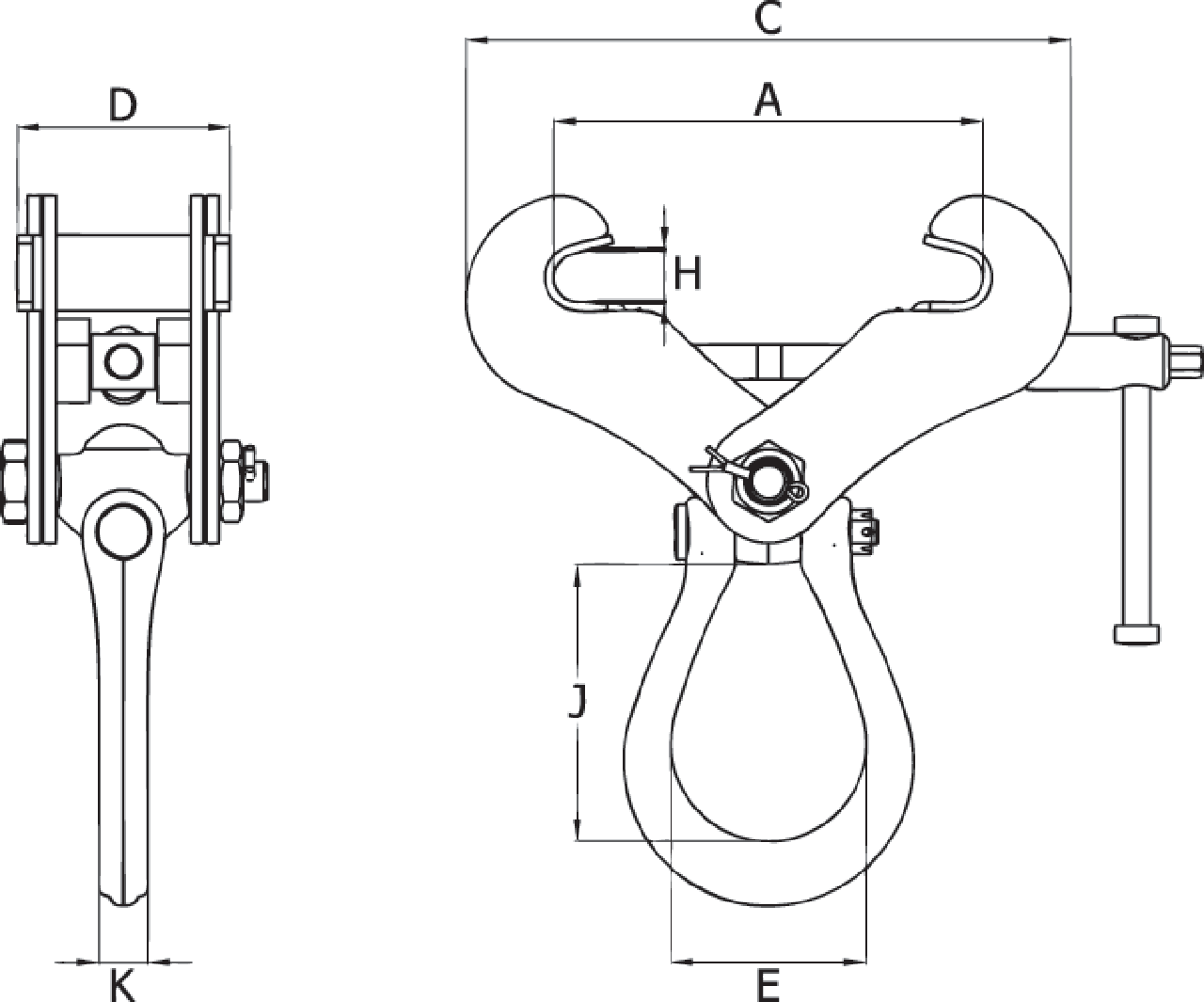

Part Code	WLL ton	Beam width mm	I P Model.	Jaw width mm	C mm	D mm	E mm	F mm	H mm	J mm	K mm	Weight kg
16.022707996	2	75-190	2-IPTKU	75-190	jaw+100	121	76	22	19	99	19	5.8
16.022707997	3	75-190	3-IPTKU	75-190	jaw+100	121	89	22	22	122	22	6.5
16.022707998	4	120-280	4-IPTKU	120-280	jaw+150	140	89	40	22	122	22	9.9
16.022707994	5	120-350	5-IPTKU	120-350	jaw+175	140	89	40	22	122	22	12
16.022707970	10	200-460	10-IPTKU	200-460	jaw+300	200	105	60	26	152	26	38
