Lifting Eye FP

E-mail View PDF

Enormously flat lifting eye.

  • The eyes can be loaded with working load limit in all directions and rotates 360°.
  • Automatic locking link when folded.
  • Secured four times against breakage in all load directions.
  • Admissible working range of take-up link 110°.

Show more

excl. VAT

Show all variants

Log in to webshop
Part code:

Filters & subcategories

Show results
*In the case of an unsymmetrical load distribution, the lifting capacities applicable to the 2 and 3 / 4 –leg slings are the same as for 1-leg types at 0°.


Enormously flat lifting eye.

  • The eyes can be loaded with working load limit in all directions and rotates 360°.
  • Automatic locking link when folded.
  • Secured four times against breakage in all load directions.
  • Admissible working range of take-up link 110°.
  • Material: Eye and swivel of alloy steel.
  • Marking: WLL.
  • Finish: Painted.
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1

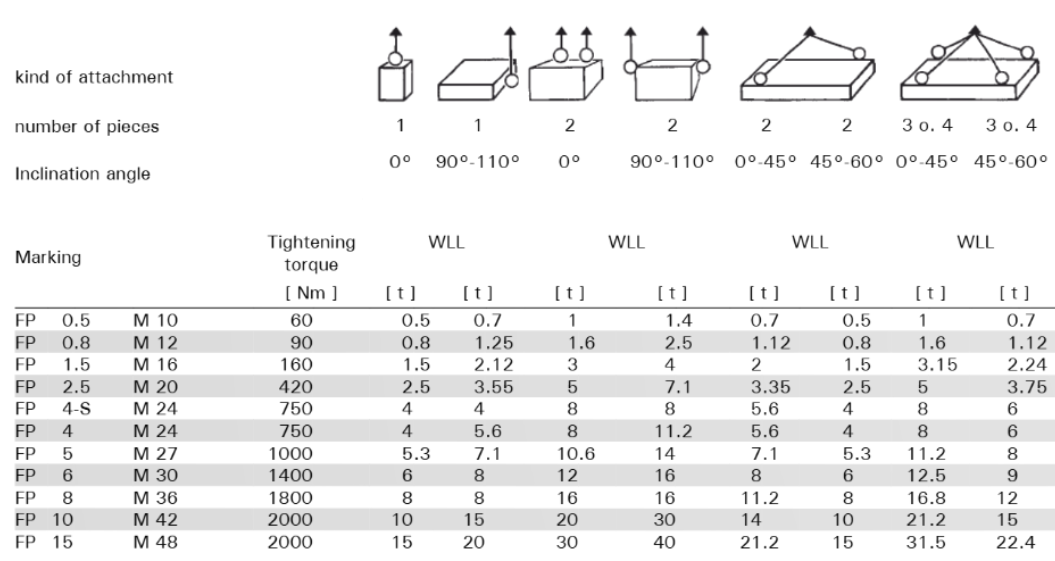

Load table lifting point FP
