• Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157, EN 15011
PKVA-5.0
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Model A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
CAD
3950001 8717365017698 1 PKVA-1.0 3,500 3,500 3,700 3,870 2,240 100 200 425
3950003 8717365017704 2 PKVA-2.0 3,500 3,500 3,740 3,960 2,240 120 200 480
3950005 8717365017711 3.2 PKVA-3.2 3,500 3,500 3,800 3,990 2,240 150 250 540
3950007 8717365025730 5 PKVA-5.0 3,500 3,500 3,800 5,020 2,240 150 300 630

Download CAD

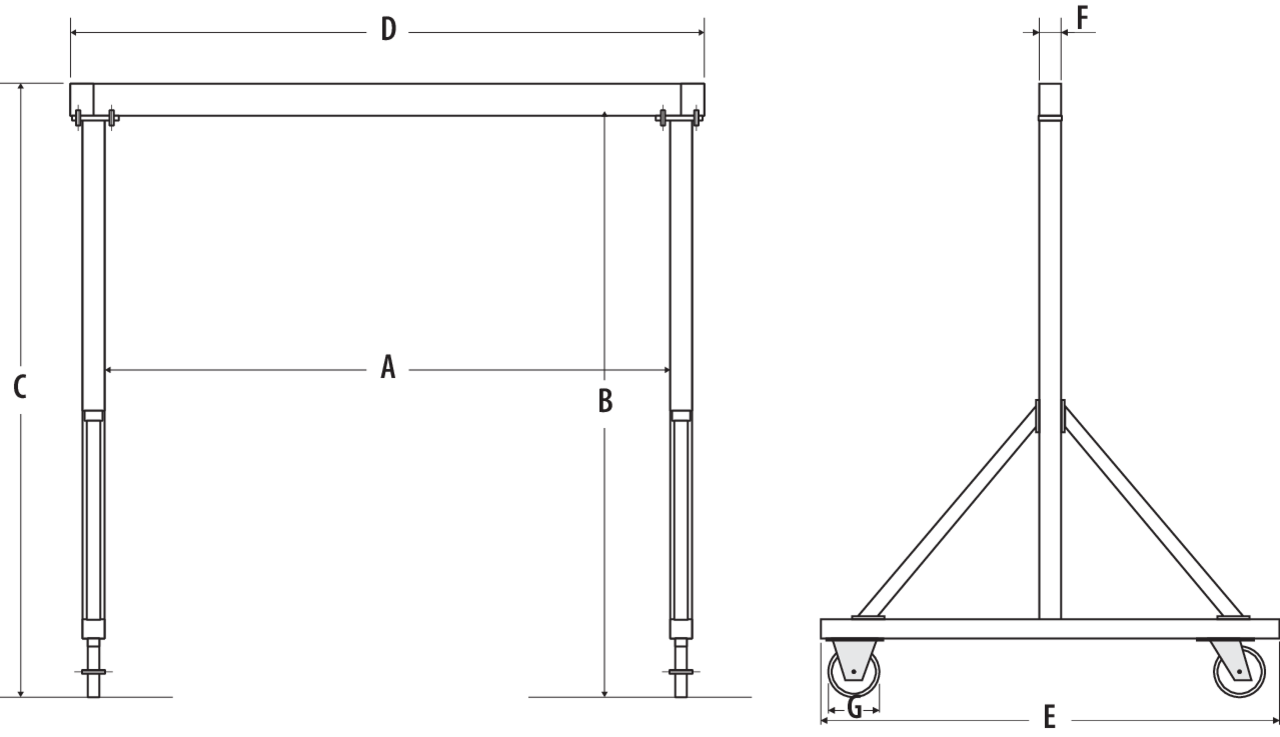

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
