The safe working load is only suitable for hoisting and pulling in line.
The lifting eye must not be loaded sideways.

  • Material: C15
  • Marking: According to standard, CE-marked
  • Standard: DIN 582
  • Note: Only use in a straight lifting position.
Select a row from the table below, then click the add to cart button

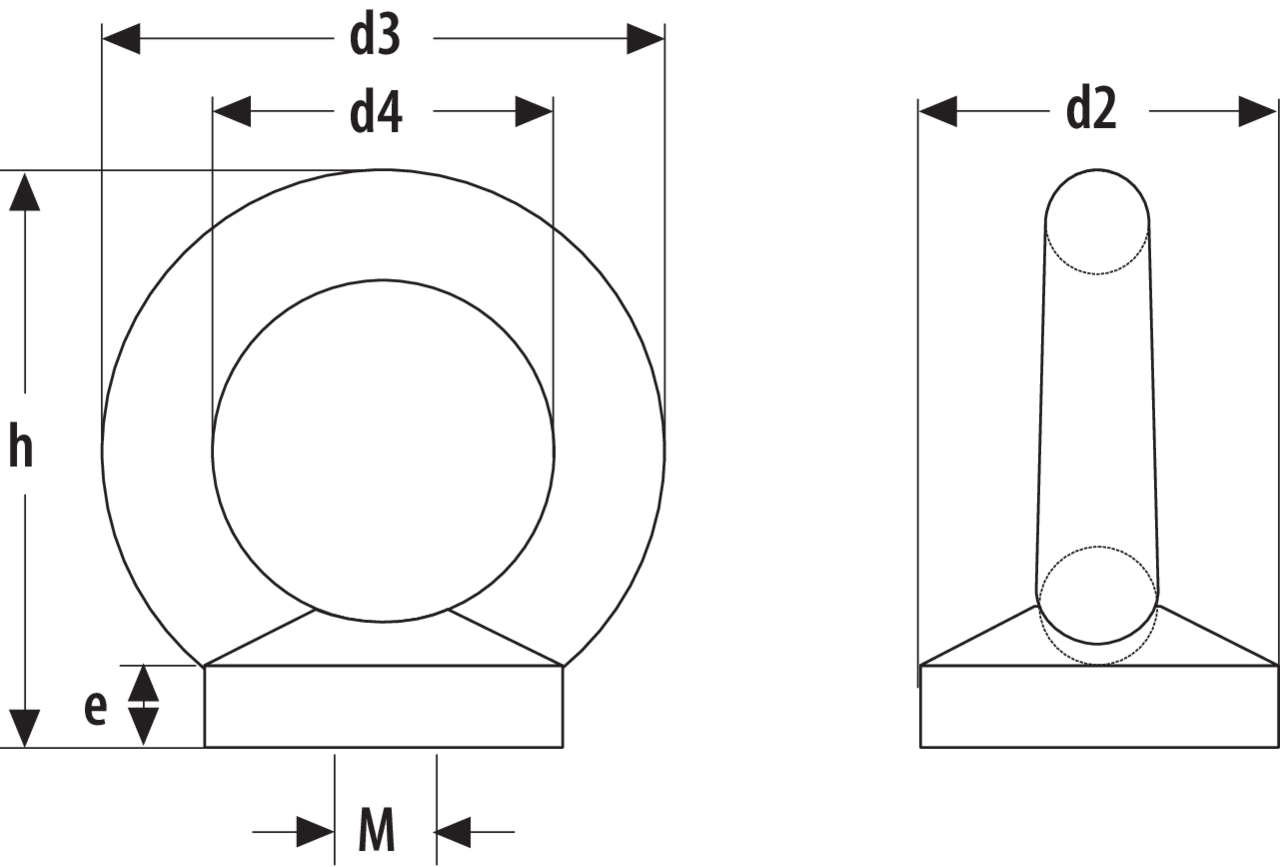

Part Code Code Model D2
mm
D3
mm
D4
mm
E
mm
H
mm
M
mm
Weight CAD
3017001 8717365013942 G8142-M8 20 36 20 8.5 36 8 0.06
3017003 8717365013959 G8142-M10 25 45 25 10 45 10 0.1
3017005 8717365013966 G8142-M12 30 54 30 11 53 12 0.16
3017007 8717365013973 G8142-M14 35 63 35 13 62 14 0.24
3017011 8717365013997 G8142-M20 40 72 40 16 71 20 0.36
3017009 8717365013980 G8142-M16 35 63 35 13 62 16 0.4
3017013 8717365014000 G8142-M24 50 90 50 20 90 24 0.71
3017015 8717365014017 G8142-M27 50 90 50 20 90 27 1.1
3017017 8717365014024 G8142-M30 65 108 60 25 109 30 1.32
3017019 8717365024894 G8142-M36 75 126 70 30 128 36 2.08
