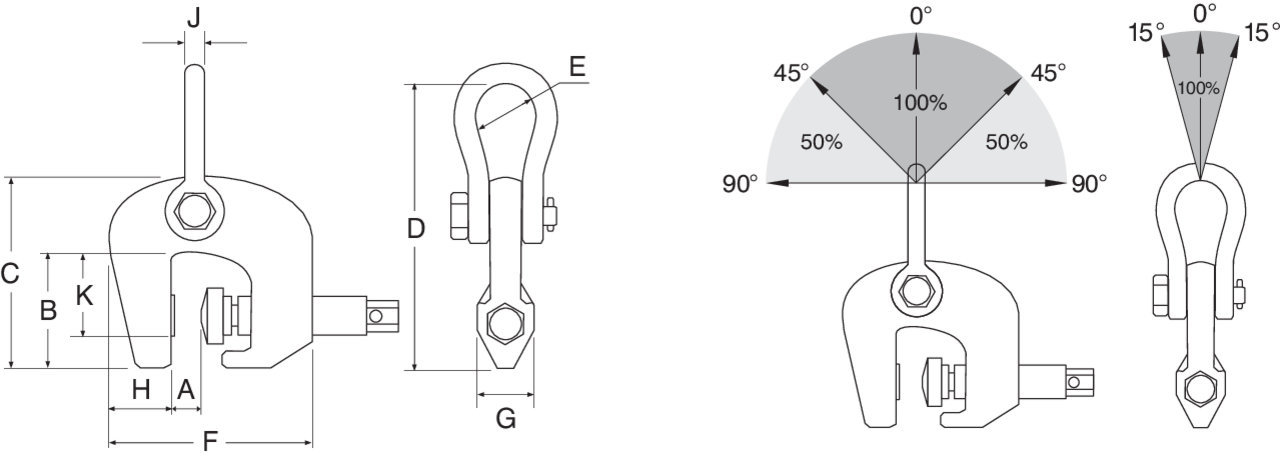

CSH screw clamps. For positioning and turning steel plates, steel sections and curved plates. As the load increases, the force is distributed over a larger part of the segment.

Application

  • The CSH screw clamp is suitable for lifting and transporting steel objects in horizontal and vertical positions.
  • Marking: CE-marked
Select a row from the table below, then click the add to cart button
Part Code Code WLL Model A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
Weight CAD
3313003 8717365015229 0.5 CSH-0.5 0-35 47 82 211 25 108 27 26 10 38 0.85
3313006 8717365261787 1 CSH-1.0 0-40 80 140 232 46 150 46 40 16 50 3.3
3313007 8717365015243 1.5 CSH-1.5 0-40 87 140 232 46 150 46 40 16 60 3.7
3313009 8717365015250 3 CSH-3.0 0-60 100 184 278 50 190 60 46 19 72 7.8
3313011 8717365023118 6 CSH-6.0 0-100 130 249 390 100 296 75 70 32 90 22
