• Not for lifting
  • Marking: AISI-316
  • Warning: Not for lifting
Select a row from the table below, then click the add to cart button

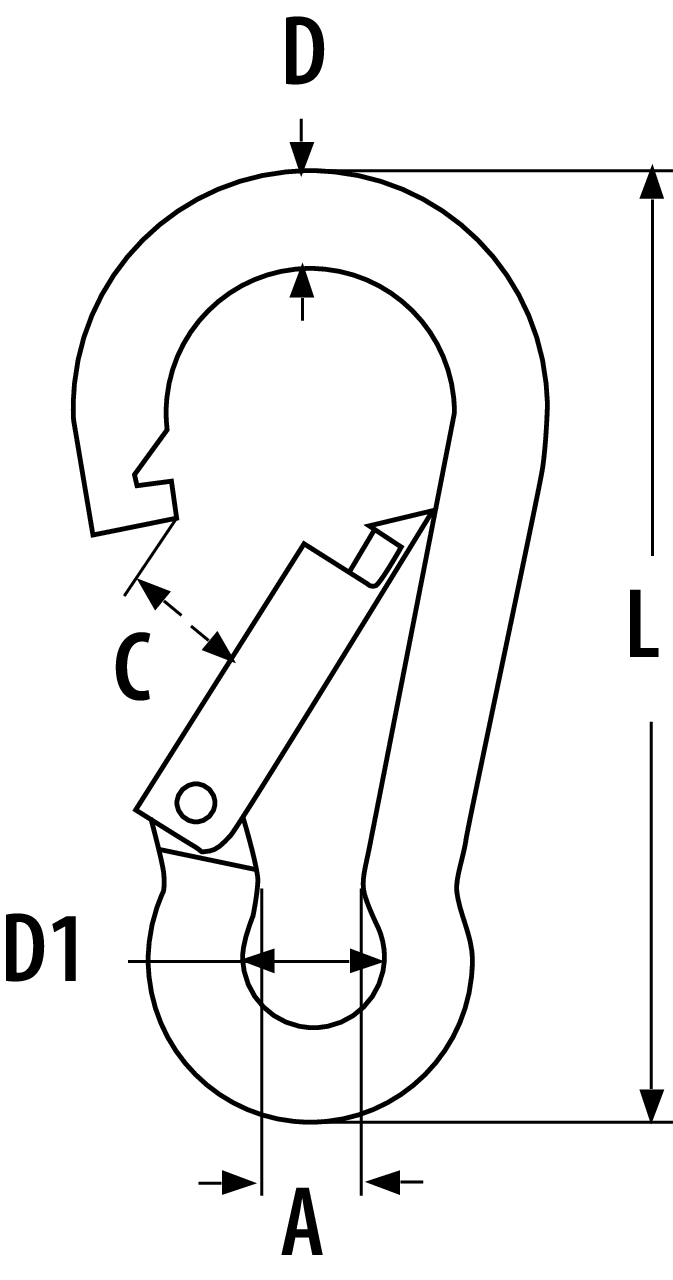

Part Code Code Diameter
mm
WLL Model A
mm
D
mm
D1
mm
L
mm
Weight CAD
2685805 8717365012815 5 0.1 K-5 6 5 10 50 0.02
2685806 8717365012822 6 0.15 K-6 8 6 11 60 0.02
2685808 8717365012846 8 0.288 K-8 8 8 13 80 0.06
2685810 8717365012860 10 0.363 K-10 10 10 16 100 0.12
