Typical application: For elevators.

Standard: DIN 15315.

  • Finish: Galvanized
  • Note: Rope sockets acc. to DIN 15315 are not appropriate for ropes of more than 1770 N/mm²
Wedge_socket_drawing_6

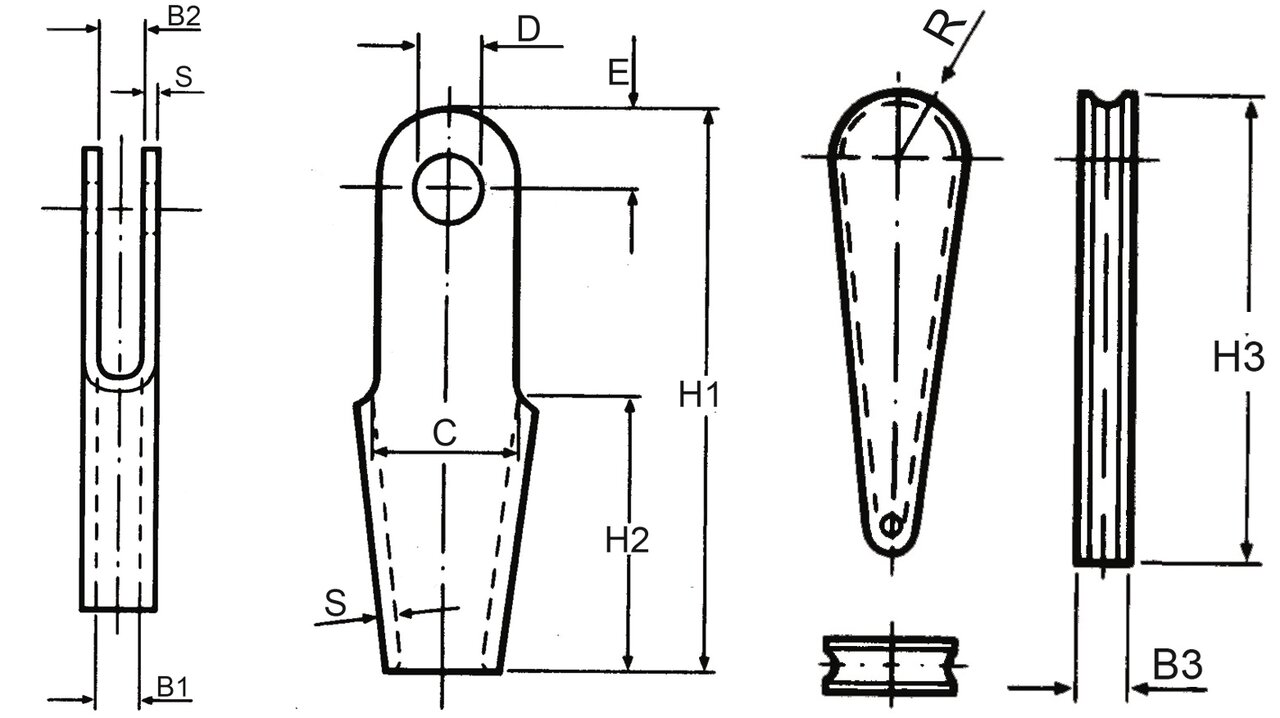

Wedge_socket_drawing_7
Select a row from the table below, then click the add to quote button
Part Code Size Rope Ø
mm
B1
mm
B2
mm
B3
mm
C
mm
D
mm
E
mm
H1
mm
H2
mm
H3
mm
R
mm
S
mm
Weight
kg
CAD
10.214830 8 6-8 12 14 11 37 12 20 150 75 92 12,5 4 0.57
10.214831 11 9-11 15 17 14 48 16 26 190 95 117 16 6 1.05
10.214832 14 12-14 20 22 18 58 18 32 230 115 141 19 8 1.89
10.214833 17 15-17 23 25 21 70 22 36 260 130 162 23 10 3.26
10.214834 20 18-20 26 27 24 82 25 40 300 150 186 26 12 5.25

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
