  • Not for lifting

Typical applications: For connecting 2 chains.

  • Material: AISI 316.
  • Warning: Not for lifting.
  • Grade: 5
Snap hook SS illu

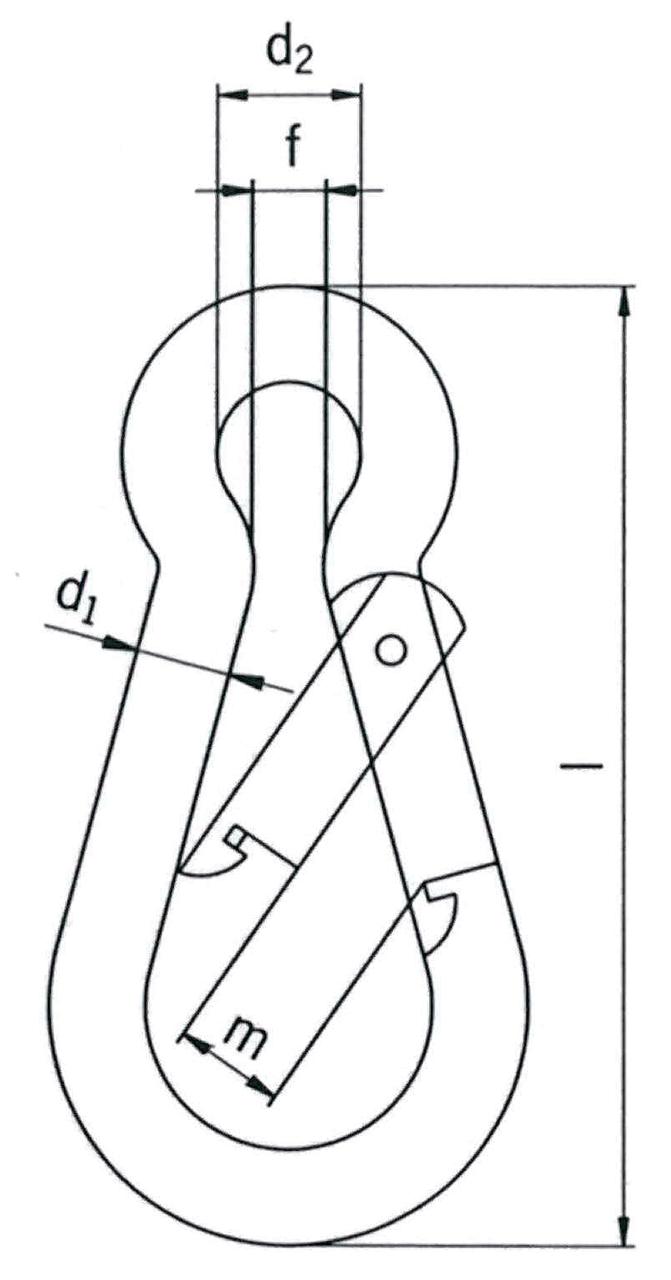

Snap hook SS dwg
Select a row from the table below, then click the add to quote button
Part Code MBL
t
Size m
mm
l
mm
D1
mm
D2
mm
f
mm
Weight
kg/100pc
CAD
11.565299C05S 0.4 5 x 50 7 50 5 8 5,0 1.9
11.565299C06S 0.48 6 x 60 8 60 6 9 6,5 2.7
11.565299C07S 0.72 7 x 70 8 70 7 10 8,0 4.4
11.565299C08S 0.92 8 x 80 9 80 8 10 8,5 6.5
11.565299C09S 1 9 x 90 10 90 9 12 9,5 8.8
11.565299C10S 1.4 10 x 100 11 100 10 15 10,5 12.7
11.565299C11S 1.8 11 x 120 16 120 11 18 11,5 18
11.565299C12S 2.04 12 x 140 19 140 12 20 13,0 26
11.565299C13S 2.4 13 x 160 25 160 13 22 15,0 35

Download CAD
