• Not for lifting

WLL are theoretic ratings. Not tested.

  • Material: AISI 316.
  • Warning: Not for lifting!

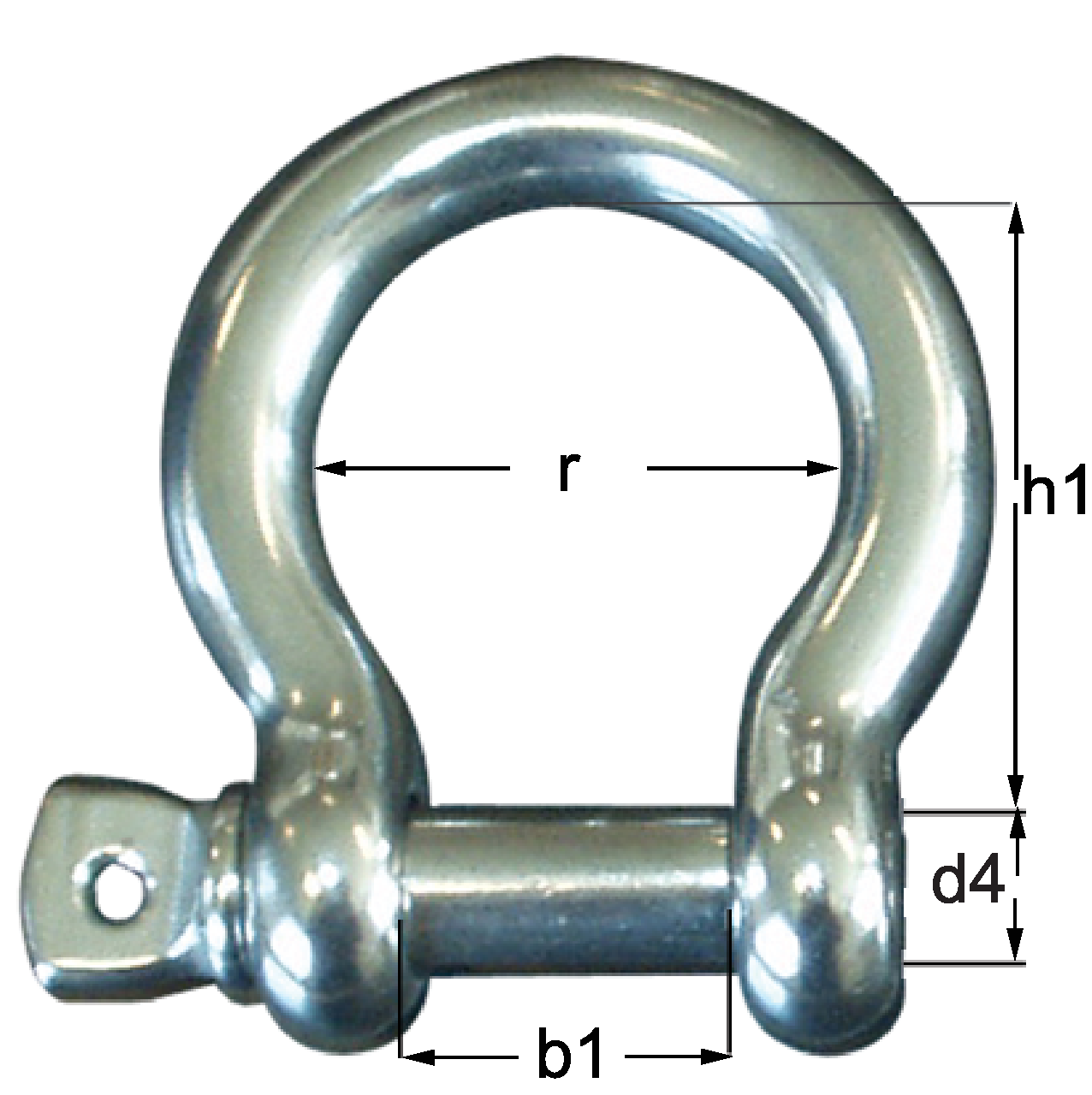

Shackle AISI 316, 304 type H
Shackle AISI 316, 304 type H
Select a row from the table below, then click the add to quote button
Part Code A
mm
d4
mm
B1
mm
r
mm
h1
mm
Weight
kg/100pc
CAD
11.5590036109 5 mm - 3/16" M5 10 15 20 1.8
11.5590037109 6 mm - 1/4" M6 12 18 24 2.6
11.5590038110 8 mm - 5/16" M8 16 24 32 5.8
11.5590039110 10 mm - 3/8" M10 20 30 40 11.3
11.5590039120 12 mm - 5/8" M12 25 36 48 20.9
11.5590039160 16 mm - 5/8" M16 32 48 64 49.8
11.5590039200 20 mm - 3/4" M20 38 60 80 92.5
11.5590039220 22 mm - 7/8" M22 44 66 88 136
11.5590039240 24 mm - 1" M24 50 75 100 192.4
