Shackle Crosby G-2160, Wide Body

Design: Wide body shackle. Shackle with improved bow radius that greatly improves life of wire rope slings. Can be used to connect wire rope slings, high strength synthetic web slings or high strengths ynthetic round slings.
Approved for use at -40 degree C to 204 degree C. Shackles 18t and larger have DNV Type Approval to Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements.

Proof load: All 2160 shackles are individually proof tested and magnetic particle inspected. Sizes 300 metric tons and smaller are proof tested to 2 times the Working Load Limit, sizes 400 metric tons and larger are tested to 1.33 times Working Load Limit.

Material: Forged alloy steel from 7 through 300 metric tons. Cast alloy steel from 400 through 1550 metric tons.
Marking: According to standard, CE-marked, WLL. Shackles, 30t and larger, are RFID EQUIPPED.
Finish: 7-55 tons are galvanized with painted pin. 75t and larger, bows are furnished Dimetcoted, and pins are Dimetcoted, then painted.
Standard: EN 13889

Safety factor: 7-300 t 5:1 ; 400 t < 4,5:1.

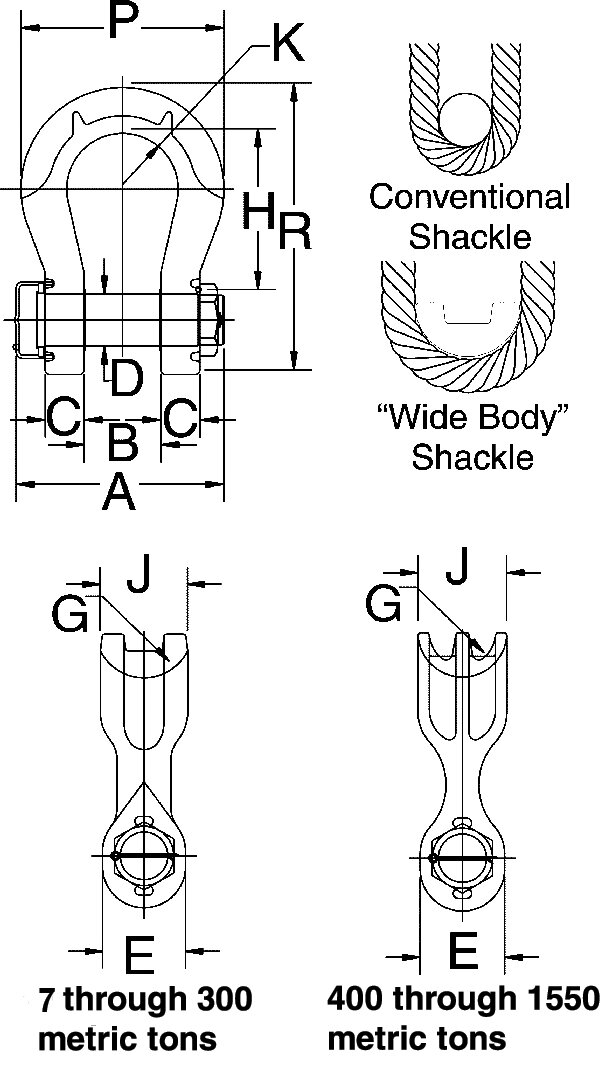

Part Code	WLL ton	Pin Ø mm	Effective body Ø	A mm	***B mm	C mm	E mm	G mm	H mm	J mm	K mm	P mm	R mm	Weight kg
11.331021256	7	22.4	53	105	31.8	17,5	46	31.8	90.4	40.6	31.8	104	149	1.81
11.331021265	12.5	28.7	61	137	42.9	23.4	60.5	34.9	118	54.1	41.4	140	194	4.54
11.331021274	18	35.1	71	170	51.6	29.5	68.3	38.1	148	63.5	50.8	172	238	6.8
11.331021283	30	41.4	104	195	60.2	35.1	88.9	63.5	176	79.5	63.5	216	289	11.3
11.331021285	40	50.8	91	236	73.2	42.9	102	44.4	205	95.3	76.2	270	346	20.9
11.331021287	55	57.2	109	263	82.6	50.8	118	66.9	238	114	88.9	311	397	32.2
11.331022101	75	69.9	150	382	105	53.8	136	95.3	293	127	92.5	312	474	51
11.331022110	125	80	173	450	130	67.6	165	95.3	365	150	110	393	594	87
11.331022118	200	105	226	491	150	74.7	214	133	480	217	138	520	773	191
11.331022127	300	133	300	574	187	97.5	267	156	600	264	160	610	957	365
11.331021334	400	160	363	772	220	131	320	203	575	320	185	690	985	518
11.331021343	500	180	376	849	250	146	340	205	630	340	225	790	1,085	653
11.331021352	600	200	516	916	275	158	394	330	700	370	247	865	1,200	967
11.331021361	700	215	422	990	300	167	433	223	735	400	270	940	1,275	1,170
11.331021254	800	230	457	1,059	325	185	449	248	750	420	277	975	1,323	1,372
11.331021389	900	250	569	1,112	350	198	478	330	757	440	293	1,025	1,387	1,712
11.331021370	1,000	270	490	1,169	380	212	508	261	760	460	308	1,075	1,405	1,850
11.331021272	1,250	300	620	1,276	432	233	573	354	930	530	323	1,175	1,660	2,588
11.331021281	1,550	320	693	1,588	465	292	616	318	1,075	590	338	1,316	1,896	3,650
