Crosby

Crosby S-280 Web Connector is designed to connect synthetic web and round sling to eye hook, masterlinks or rings and standard shackles.

  • Material: All alloy construction.
  • Finish: Red painted.
  • Safety factor: 5:1.
S-280_1
S-280_2

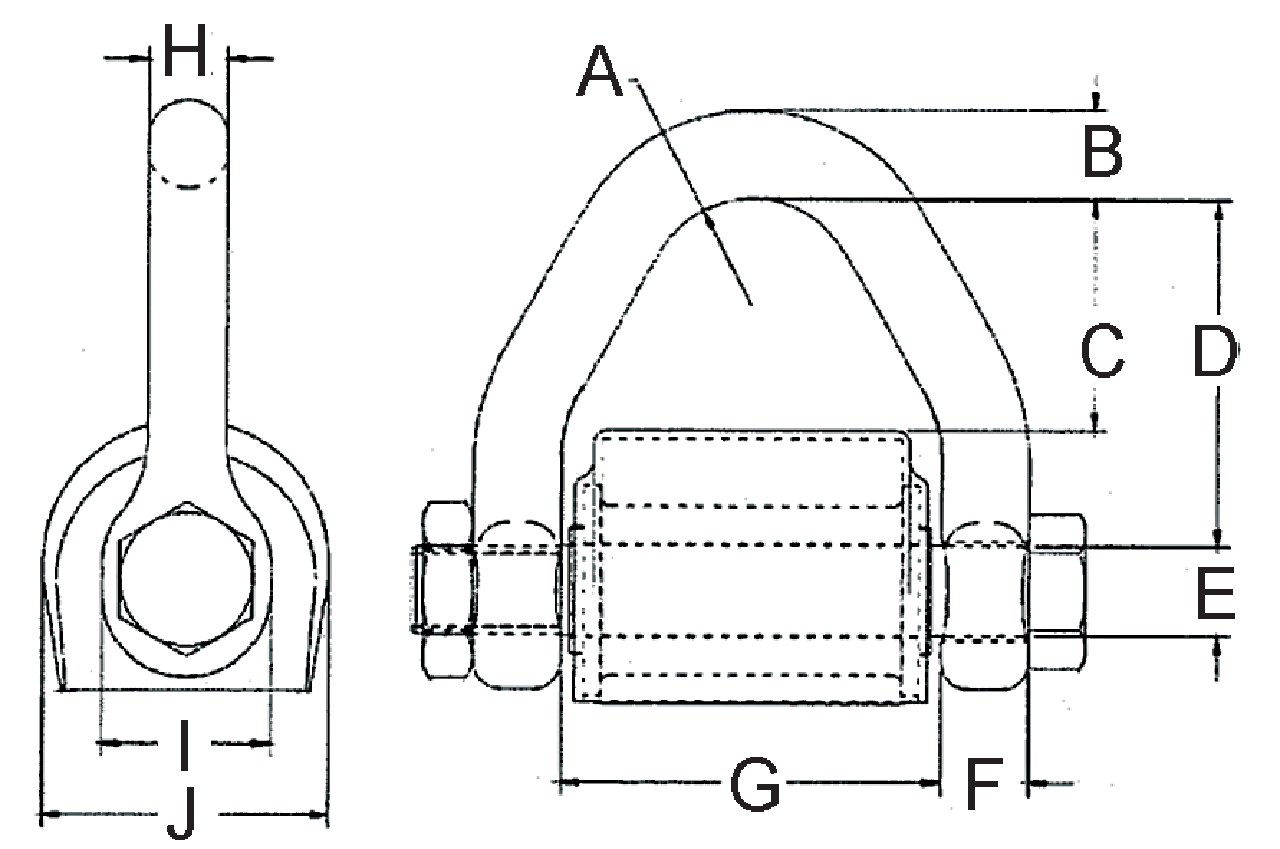

S-280 dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Web slings* Webbing width
mm
Web slings* Eye width
mm
Web slings* Ply A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
J
mm
Weight
kg
CAD
11.341021681 2.95 50 50 2 19,1 15,7 41,4 62,0 16,0 15,7 68,5 14,2 30,2 51,5 0.68
11.341021690 4.08 75 35 2 19,1 17,5 27,9 51,0 19,1 17,5 55,5 15,2 35,1 59,5 0.86
11.341021700 5.67 100 50 2 19,1 20,6 42,2 65,0 22,4 19,1 68,5 17,5 41,1 62,5 1.32
11.341021709 7.7 150 75 2 25,4 23,9 62,5 89,0 25,4 22,4 93,5 22,4 47,8 72,0 2.31
* Designed for use with type III (eye & eye), class 7, 2 ply web slings. For 3" and larger webbing width, tapered eye is required.
** Maximum proof load is 2-½ times the WLL. Minimum ultimate strength is 5 times the WLL.


Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
