• Not for lifting
  • Material: AISI 316.
  • Warning: Not approved for lifting.
  • Grade: 5
KL_White_225mm

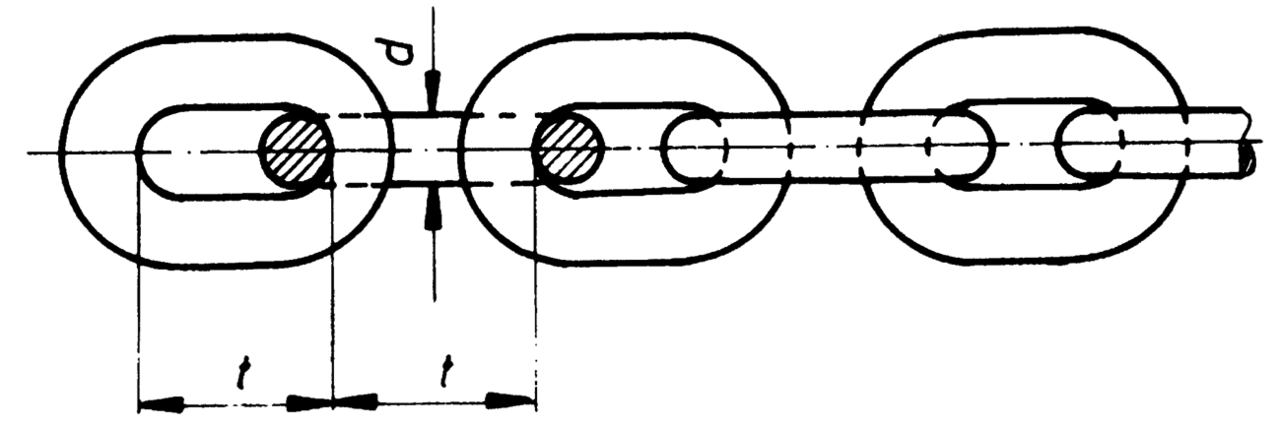

Chain AISI 316 dwg
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
Outside width
mm
Inside width
mm
D
mm
Weight
kg/m
11.61CAX316D020 2 16 x 8 12 x 4 2 0,07
11.61CAX316D030 3 22 x 12 16 x 6 3 0,16
11.61CAX316D040 4 24 x 14 16 x 5 4 0,32
11.61CAX316D050 5 28 x 17 18,5 x 6,5 5 0,5
11.61CAX316D060 6 30 x 20 18,5 x 7,4 6 0,75
11.61CAX316D080 8 40 x 26 24 x 9,2 8 1,35
11.61CAX316D100 10 48 x 34 28 x 12,8 10 2,25
