• Marking: According to standard, CE-marked
  • Standard: EN 1677-2
  • Safety factor: 4
  • Grade: 10
Select a row from the table below, then click the add to cart button
Part Code Code WLL Size Model P
mm
T
mm
H
mm
O
mm
W
mm
Weight CAD
2638006 8717365112164 1.4 6 RCH-6MM 72 16 21 19,8 68,3 0.33
2638008 8717365112171 2.5 8 RCH-8MM 87,3 19 27 26,3 86,8 0.7
2638010 8717365112188 4 10 RCH-10MM 102,5 26 34,3 28,2 105,6 1.2
2638013 8717365112195 6.7 13 RCH-13MM 129,5 33 42,5 39 131,5 2.3
2638016 8717365112201 10 16 RCH-16MM 157 40 49,7 45,6 159 4.1

Download CAD

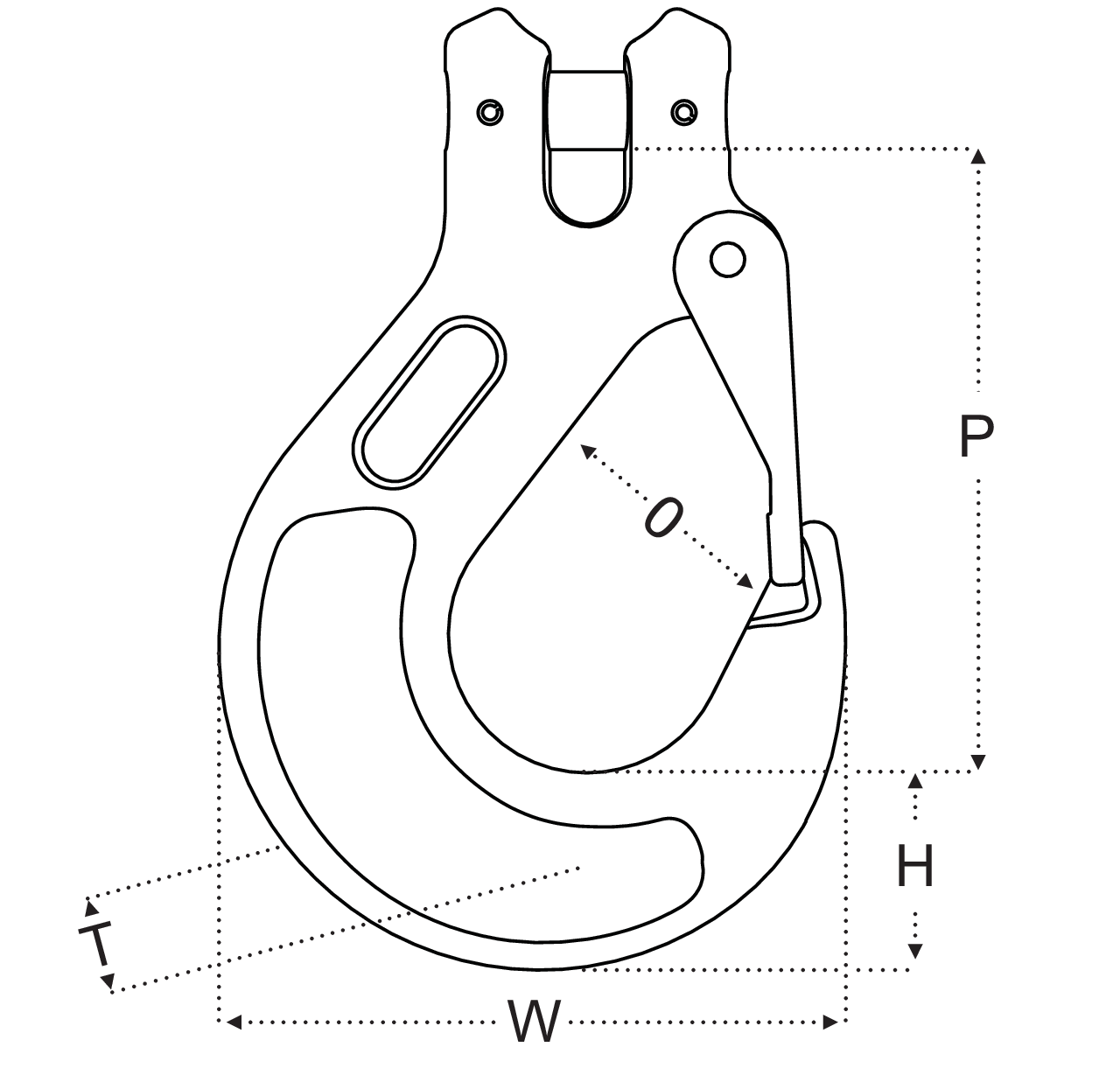

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
