Adjustable spindle beam clamp for creating a semi-permanent suspension point. With a second screw fastens the clamp to prevent movement.

Properties

  • Simple and quick assembly.
  • Suitable for various sizes of angle profile.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Safety factor: 4
Select a row from the table below, then click the add to cart button

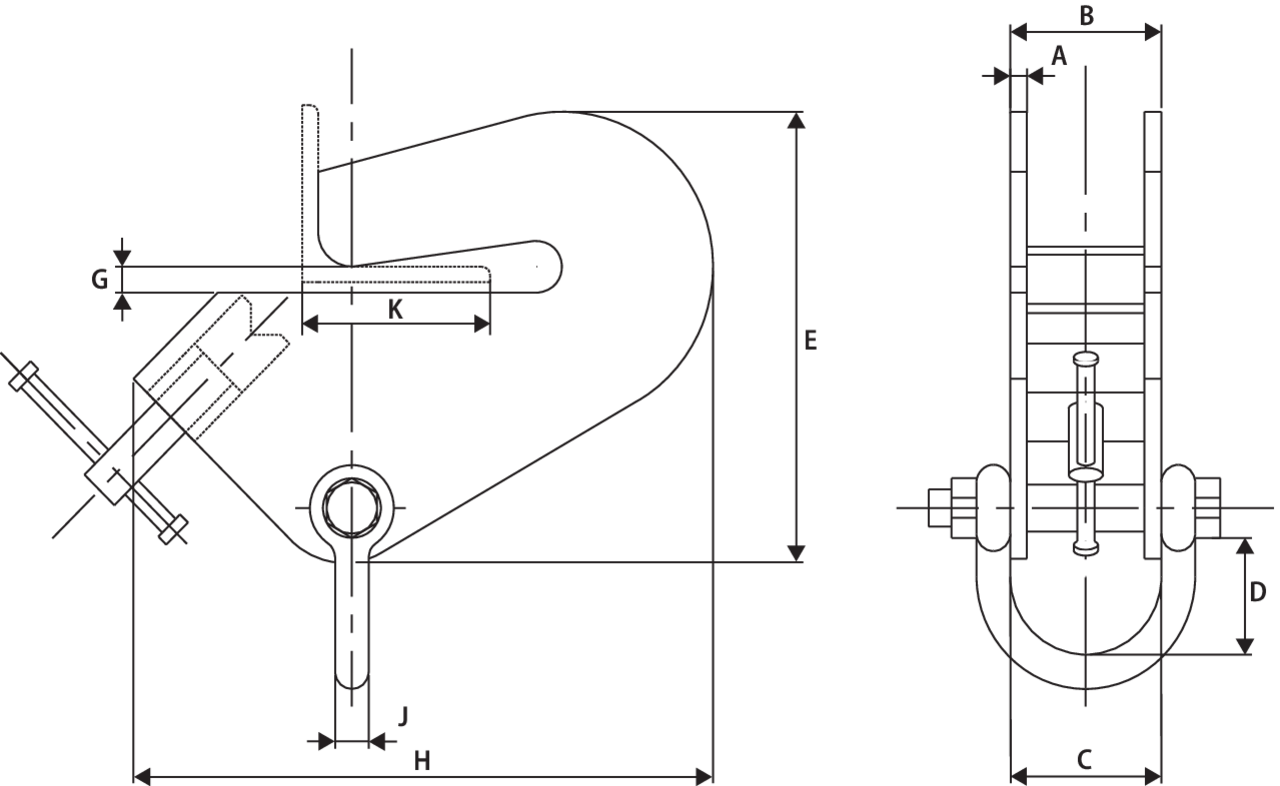

Part Code Code WLL Model A
mm
B
mm
C
mm
D
mm
E
mm
G
mm
H
mm
K
mm
J
mm
Weight CAD
3318403 8717365114755 1 RMAC-1T 6 69 70 96 206 15 258 16 38-101 4.5
3318405 8717365114762 1.5 RMAC-1.5T 8 99 107 98 270 19 346 20 50-152 11
3318407 8717365114779 3 RMAC-3T 10 99 107 98 343 25.4 490 20 101-203 21.5
