General: For lifting sheet metal stacks and boards.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Note: Recommended angle ß of inclination of the sling: 15-30°. To be used with 3 or 4 -leg chain sling.
  • Warning: Not to be heat-treated
  • Safety factor: 4:1.
  • Grade: 10
kwb_BHSX_L
4-Part_0-45_225mm
kwb_BHSXm
Select a row from the table below, then click the add to quote button

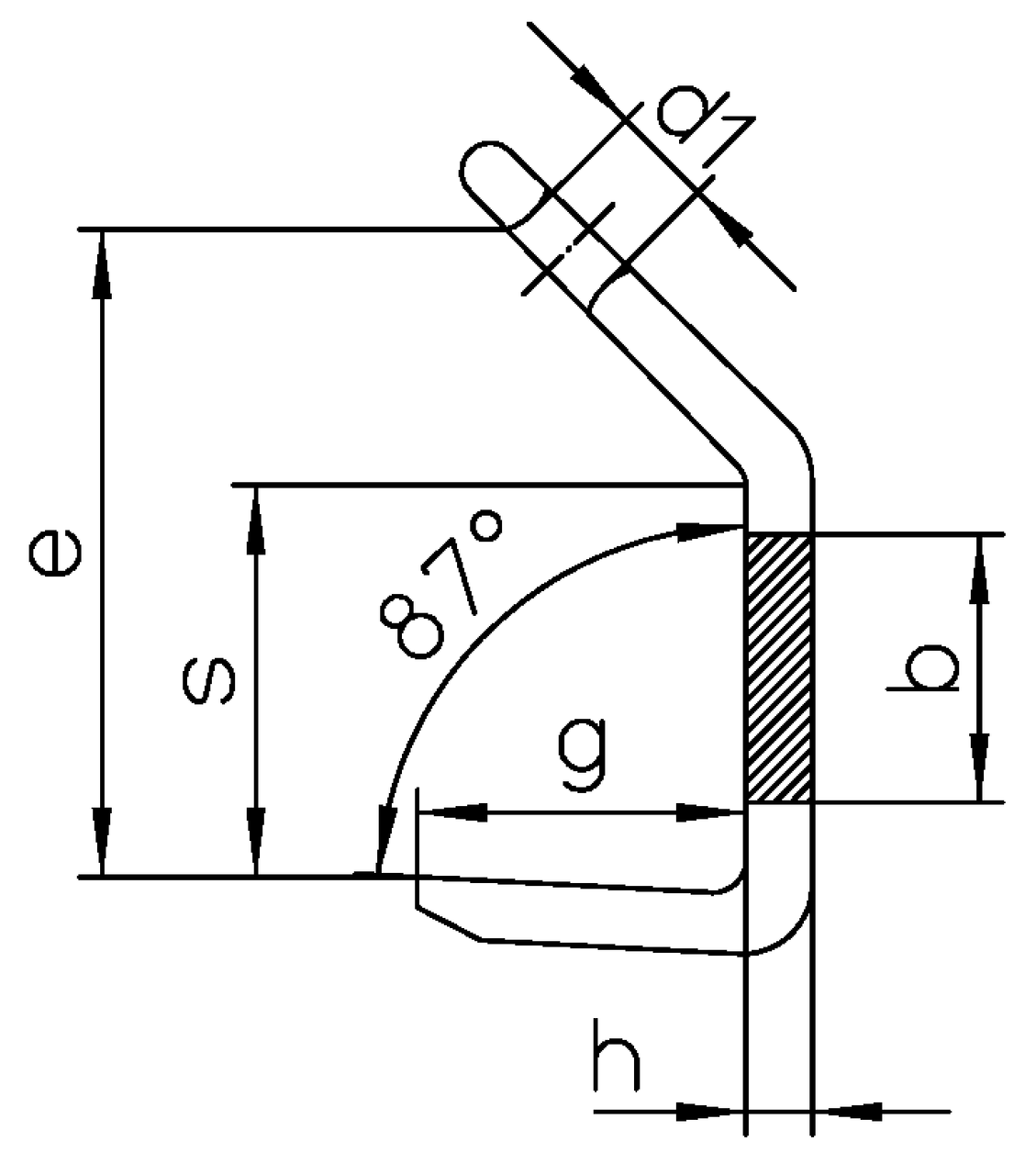

Part Code Code WLL
ton
G
mm
s
mm
h
mm
e
mm
D1
mm
B
mm
Weight
kg
CAD
04.64BHS08 BH/S-8-10 2.5 55 80 18 131 28 50 1.1
04.64BHS10 BH/S-10-10 4 65 100 20 157 32 70 2.6
04.64BHS13 BH/S-13-10 6.7 90 130 26 207 40 80 5.9
04.64BHS16 BH/S-16-10 10 110 160 33 261 50 100 11
04.64BHS19 BH/S-19-10 16 130 185 40 302 60 120 17
04.64BHS22 BH/S-22-10 19 150 220 50 363 75 140 31
